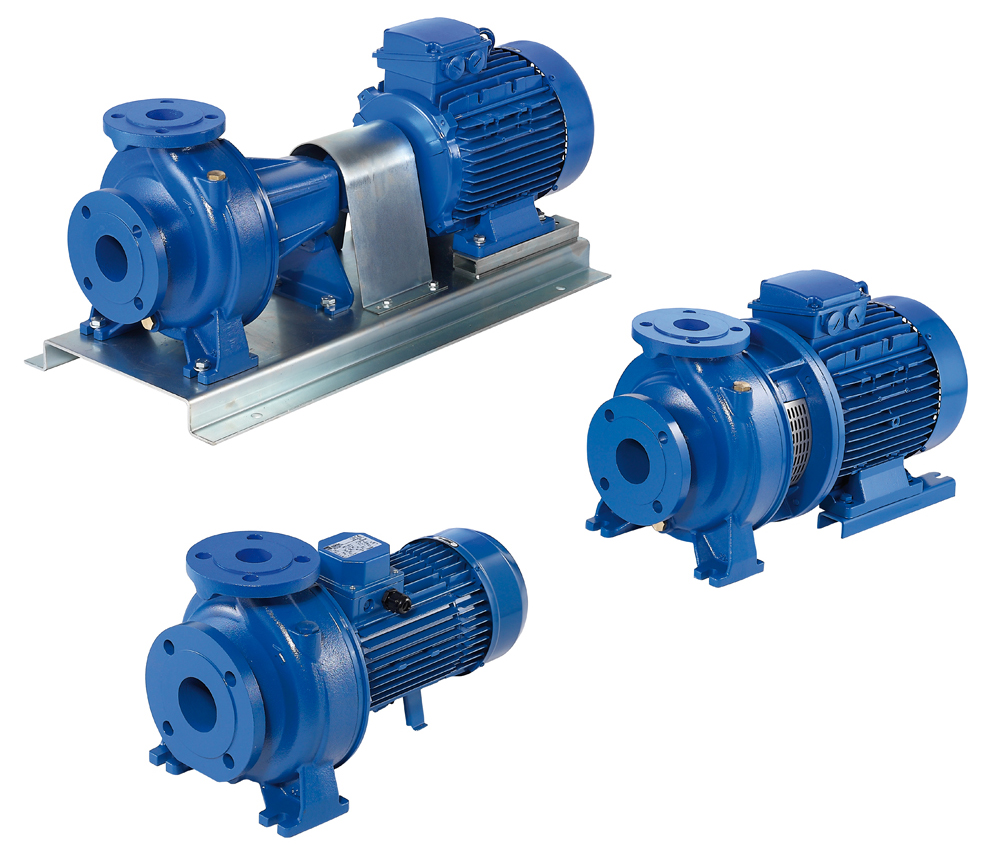

Консольно-моноблочные насосы серии 3-3(L) 3D SERIES

TECHNICAL FEATURES

• Available with various special sealing systems

• Impeller hydraulically balanced to prevent axial thrusts against the seal, it achieves

80% efficiency.

• Made of stainless steel AISI 304

• Back pull-out design : it allows removal of the motor, the coupling, the cantilever

support and the impeller without compromising the housing of the pump body or removing the pipes.



LIQUID TEMPERATURE RANGE

from -10°C to + 90°C for the standard version

from -20°C to + 120°C for the special versions



MAXIMUM WORKING PRESSURE

10 bar



MATERIALS AVAILABLE

Cast iron



REGULATION

It complies with regulations ErP 547/2012 (index MEI > 0.4),

640/2009 (motors in IE3 efficiency class) EN 733
